Equipment
It is important to note that Technological Pole uses the UNINETTUNO e-learning platform which is a web application rich of multi-media materials; therefore it is important to have a Broadband Internet connection.
Several Personal Computers must be available for the users; the number must be proportioned to the total number of the students. Each personal computer must have the following minimum requirements: screen resolution Full HD, 8 GB RAM, 250 GB SSD, HD webcam, microphone, headset;
A Large Display with HD webcam will serve two functionalities: it will allow the students to follow demonstration of a Tutor and it will allow all the users to follow a videoconference.For a Large Display either a LCD Monitor of 50-60 inch or a projector with a screen can be used.
A TV set with a satellite antenna and decoder will allow the users to follow all the schedules broadcasted by UNINETTUNO Free on Air on the satellite channel UninettunoUniversity TV.
Technical data: Satellite: HotBird 13° Est; Frequency: 11804,2 MHz; Polarisation: vertical; SymbolRate: 27,5 Msym/s; FEC: 02/3
The television receiver can also be the one integrated in the LCD Monitor.
The Technological Pole is completed with the Servers that allow the Personal Computers to access Internet. If the Technological Pole is not inside an already existent LAN; the Servers shall perform the following tasks: Firewall, Proxy, Domain Controller. Switches and Ethernet cables will complete the LAN.

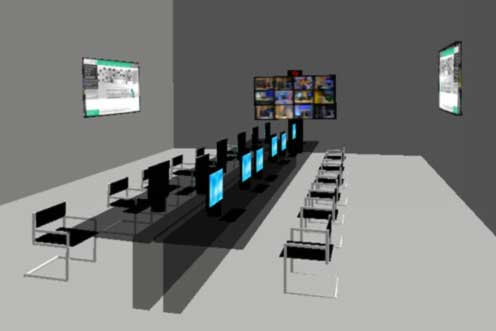

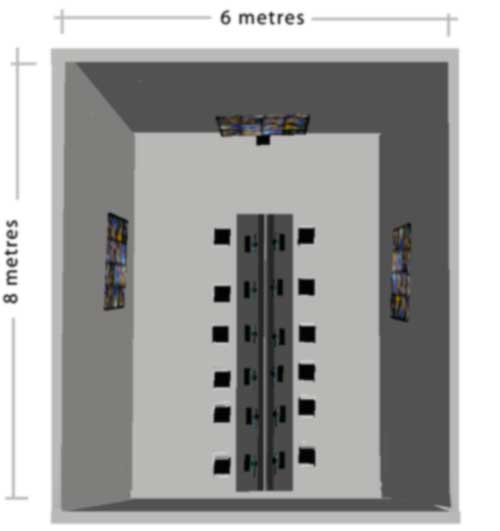

Example of architectural layout
Below there are some graphical indications for a Technological Pole. In these drawings
Example of a Technological Pole: Rabat
In Rabat (Morocco), at the Morocco Secrétarait d´Etat chargé de la Formation Professionnelle, it has been established a fully functional Technological Pole of UNINETTUNO.

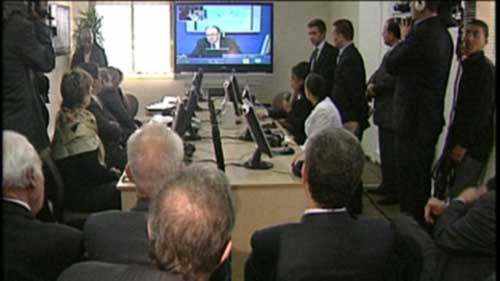

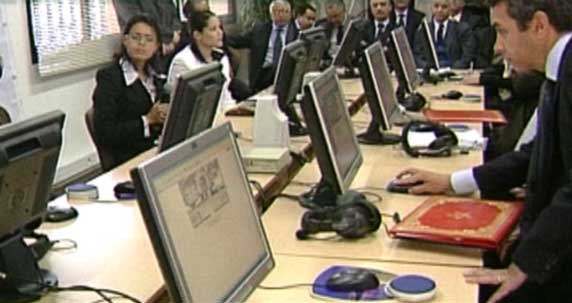

Below there are some pictures of the Technological Pole in Rabat.
